Product Description

TS5823:

• Modulate: Wideband FM Modulate
• Video Format: NTSC/PAL
• Output Impedance: 50 Ohm
• Output Power: 23~24dBm
• Channel: 32CH
• Operating Voltage: 7V~24V
• Supply Current: 190mA
• Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
• Audio Carrier Frequency: 6.5MHz
• Video Input Level: 0.8~1.2 Vp-p
• Video Input Impedance: 75 Ohm
• Audio Input Level: 0.5~2.0 Vp-p
• Audio Input Impedance: 10K Ohm
• Connector: RP-SMA

Features:

• Micro sized and light weight - perfect for use with small models
• 32 channels: Cover A, B, E bands and F bands
• Transmitter frequency: 5645-5945MHz with 200mW power output
• Transmitting distance > ~1500m (open area)

Package Include:

• 1 x TS5823 5.GHz 200mW 32CH A/V transmitter
• 1 x Antenna
• 1 x cable

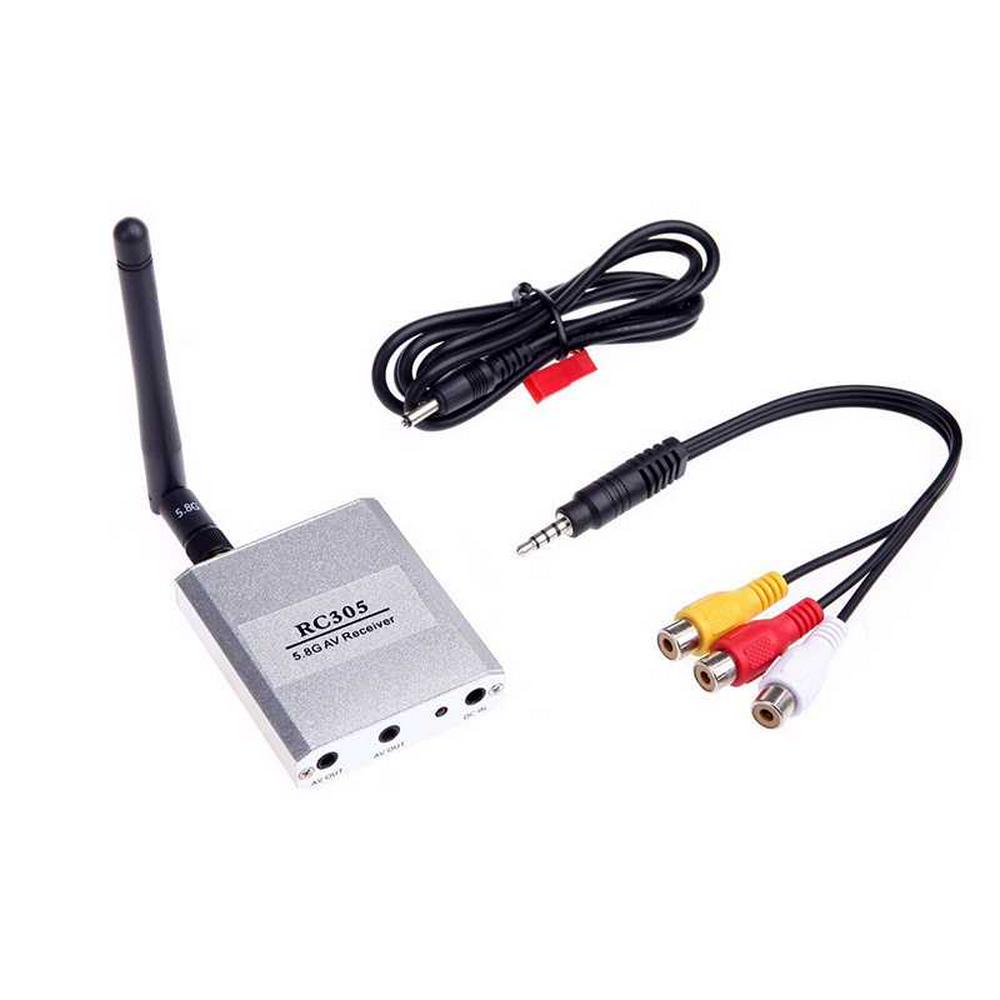

RC305:

• RC305 5.8G AV Receiver with 8 channels, it can receive high quality video and audio signals;
• With broadband receiving frequency: 5725-5865MHz;
• Small size, light weight, easy to carry;
• Ideal for FPV, wireless remote control aircraft, wireless remote control vehicle and so on.

Specification:

• Receiving frequency: 5725-5865MHz; 8channels;
• Receiving sensitivity: - 90dBm;
• Frequency control: built-in frequency and phase lock loop;
• Double lines AV output: analog AV signal output;
• Antenna connector: RP-SMA;
• Power supply voltage: 6.5-12V ;
• Supply current: 150mA;
• Working frequency: CH1:5705, CH2:5685, CH3:5665, CH4:5645, CH5:5885, CH6:5905, CH7:5925, CH8:5945;
• Applications: Remote control aircraft / Remote spacecraft / Remote control toys.

Package List:

• 1 * RC305 Wireless Receiver
• 1 * Antenna for Receiver
• 1 * AV Cable for Receiver
• 1 * DC Cable for Receiver
