Specifications

• Frequency Response: 20 Hz to 20 Khz, +/- 0.5 dB
• Distortion: Less than 0.01% @ 1 kHz, -30 dBu input
• Signal to Noise Ratio: 80 dB @ 1 kHz, -30 dBu input
• Gain: +20 dB to Infinity

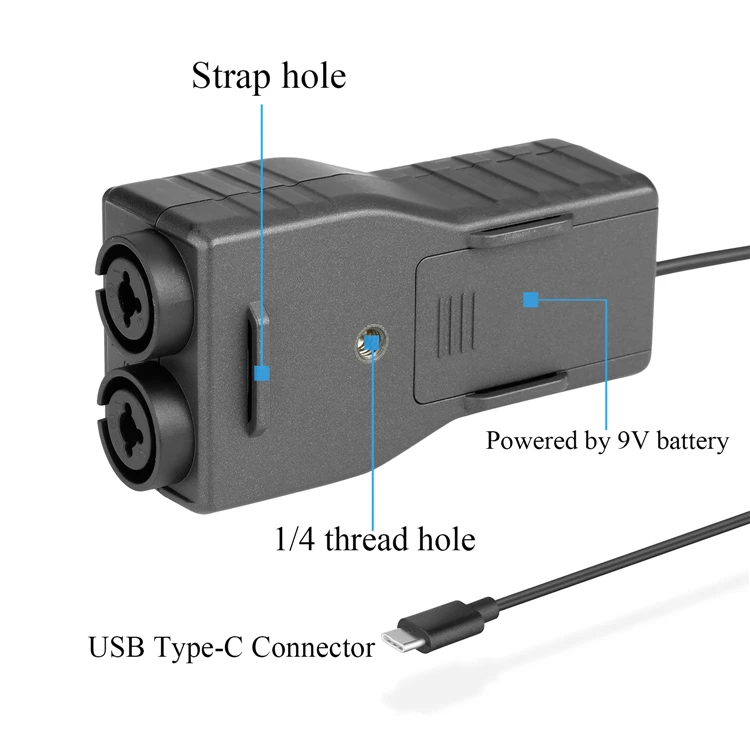

• Power Requirement: One 9V Alkaline or Lithium
• Dimensions: 4.7 x 1.6 x 1.6" (12 x 4 x 4cm)
• Weight: 4.6 oz (130g)

Features

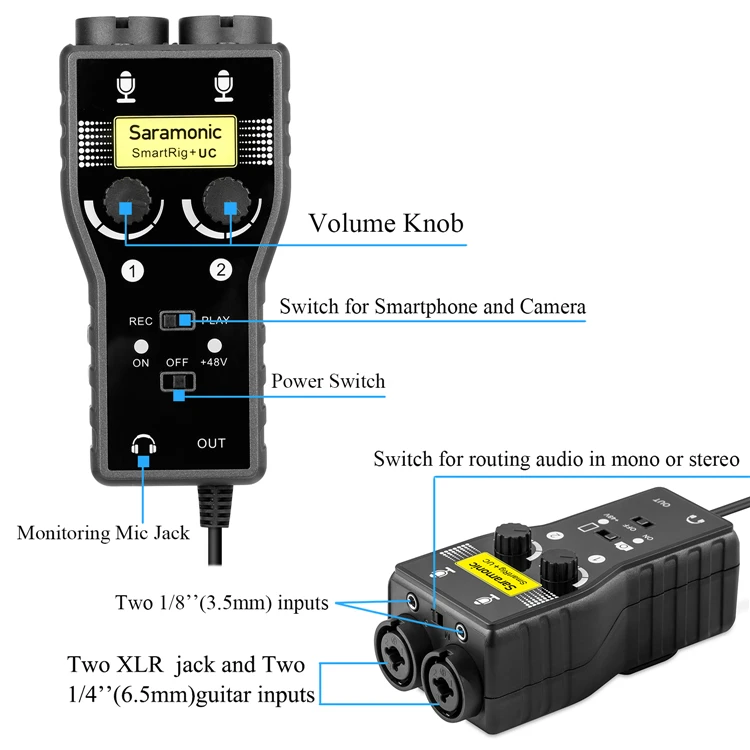

• 2 Independent Channels
• Two XLR Microphone Inputs
• Two 3.5mm (TRS) Microphone Inputs
• Two 1/4" Guitar Inputs
• Gain Control Knobs for Each Channel
• +48V Phantom Power Switch
• Mono/Stereo Output Switch

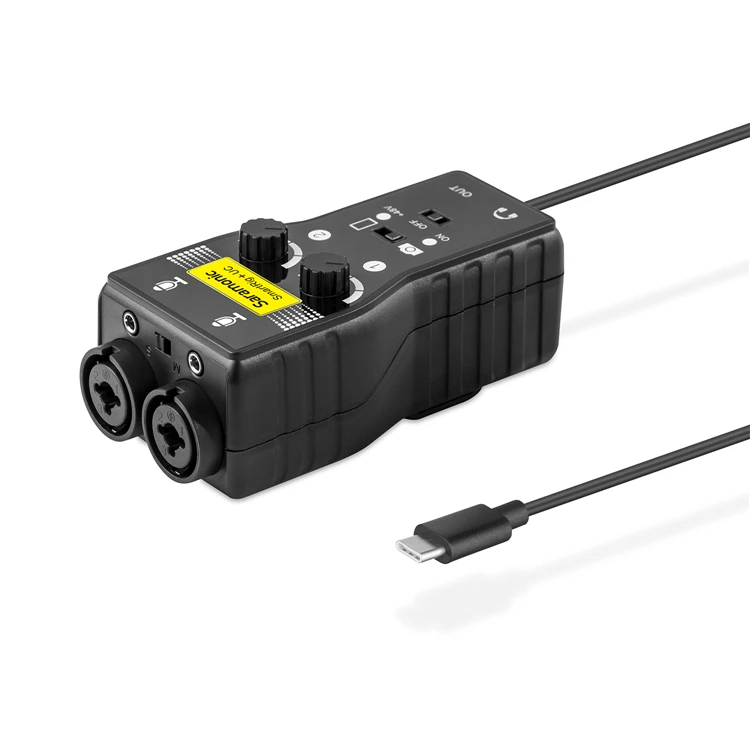

• USB Type-C Output Connector
• 3.5mm Headphone Output Jack for Monitoring

Included in the box

• 1* Saramonic SmartRig+ UC Rig Unit
• 1* User Guide
• 1* Warranty Card
• Manufactory original Package

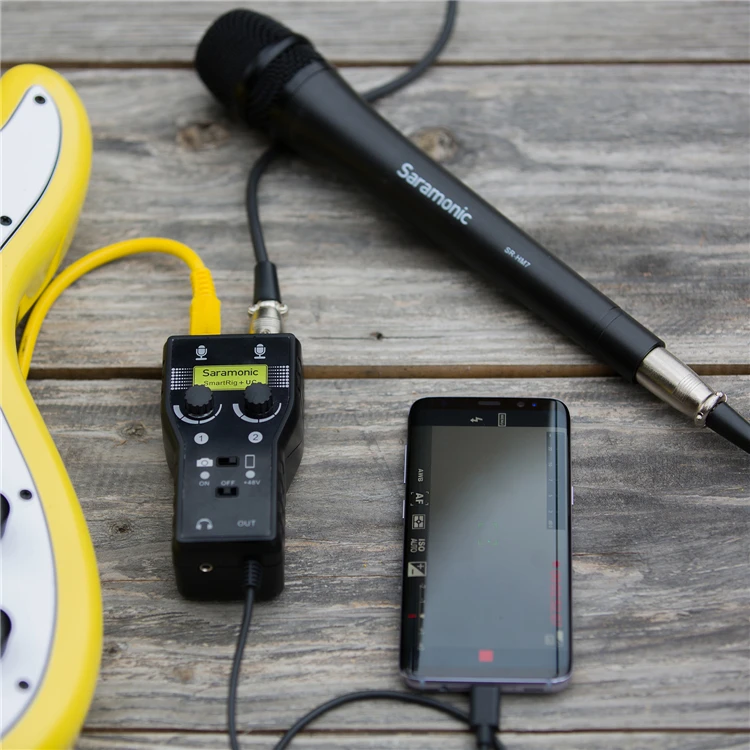

The SmartRig+ UC makes your recording work easier by connecting professional microphones and guitars (or other instruments) to your smartphone or tablet. 2 independent channels allow you to connect and control gain on multiple microphones or guitars at the same time. The interface also features 3 types of input to accommodate any set up: two XLR mic inputs, two 1/4" (6.35mm) guitar inputs, and two 1/8" (3.5mm) jack inputs for connecting any instrument or microphone. Features a USB Type-C Output Connector allowing you to attach an XLR microphone or 6.3mm guitar directly to your lighting connected USB-C device

Provides 48V phantom power for microphones, and includes a 3.5mm headphone output for real-time sound monitoring. The two gain control thumbwheels make it easy to set precise levels. Toggle between Mono and Stereo output modes as necessary. Powered by one 9V battery.
